Product manual:

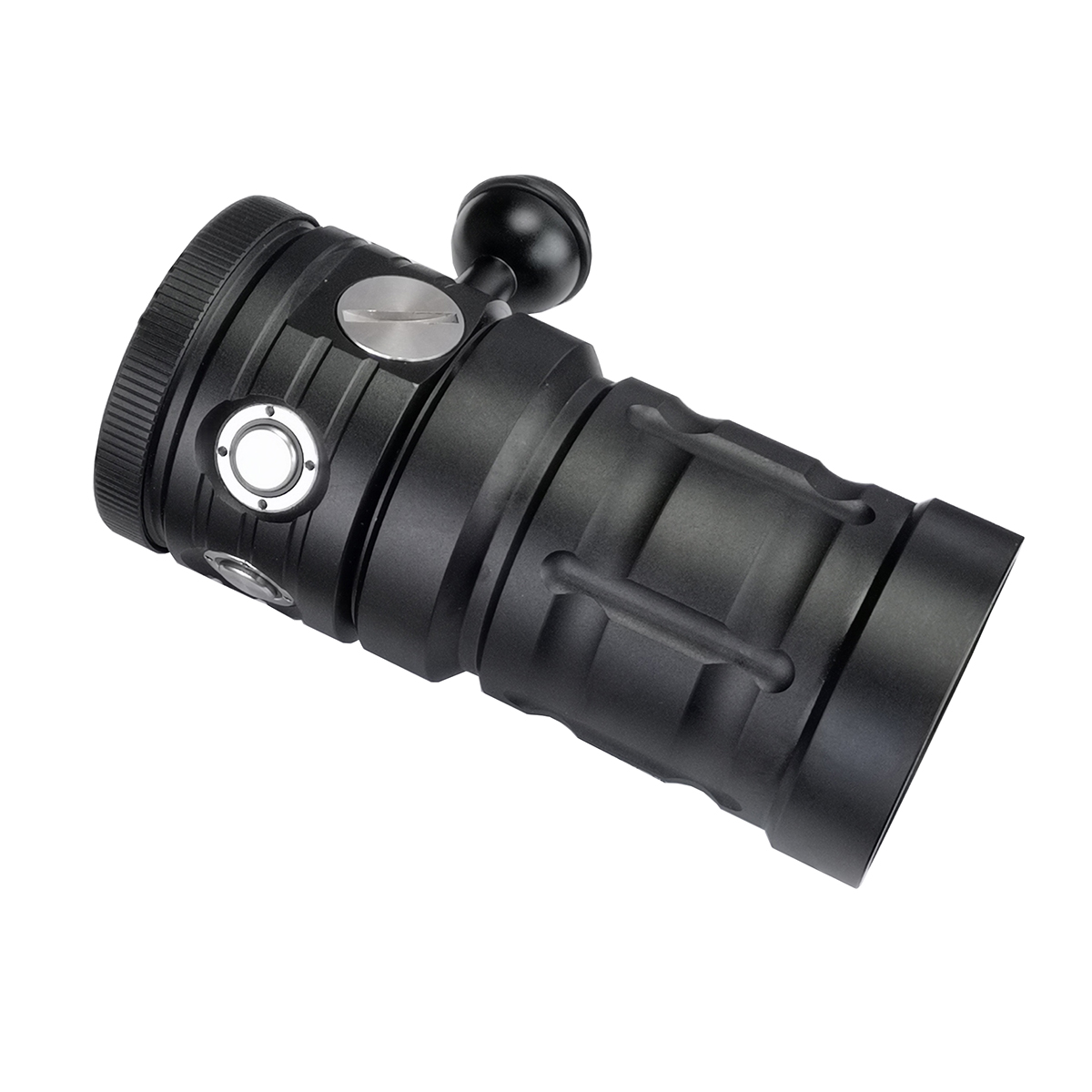

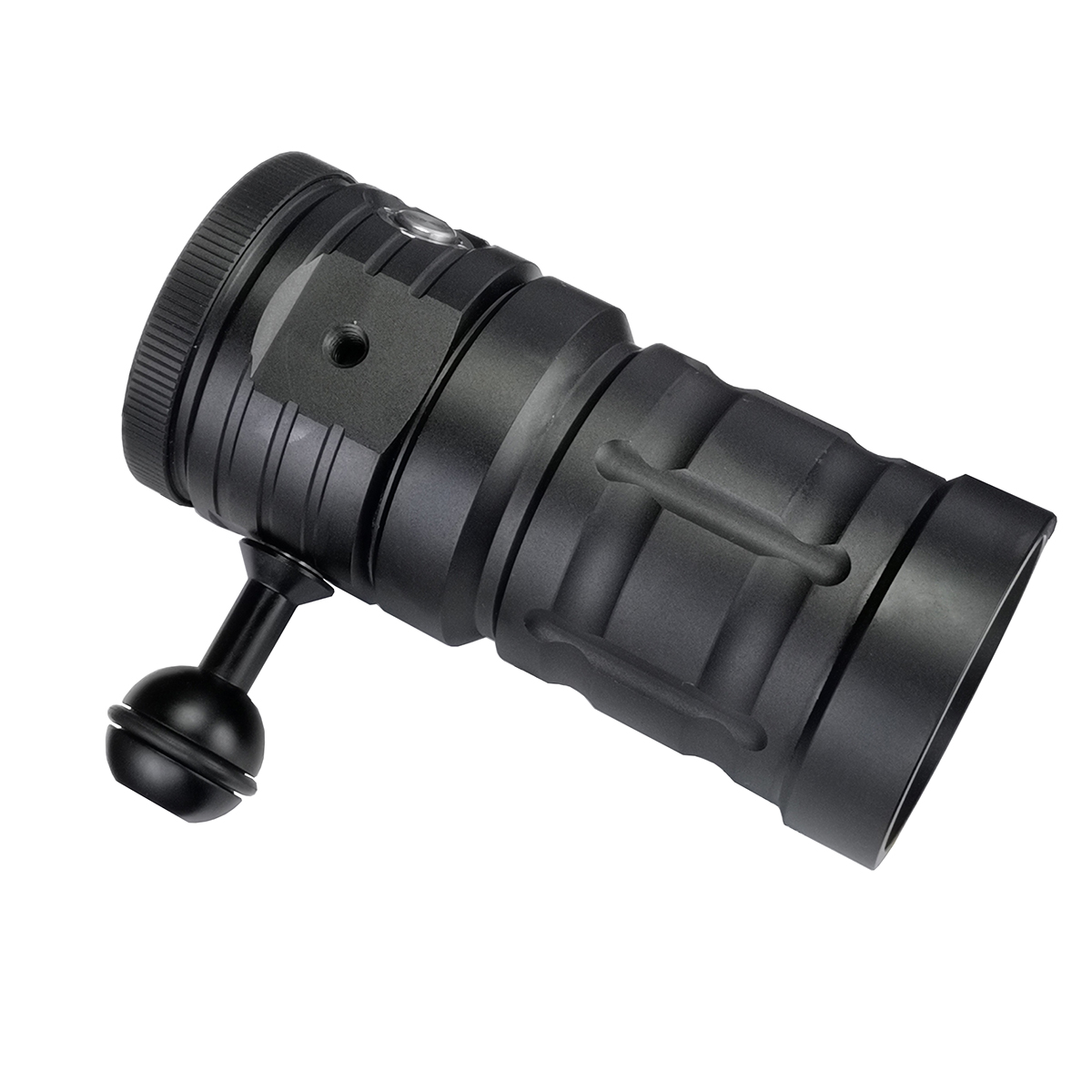

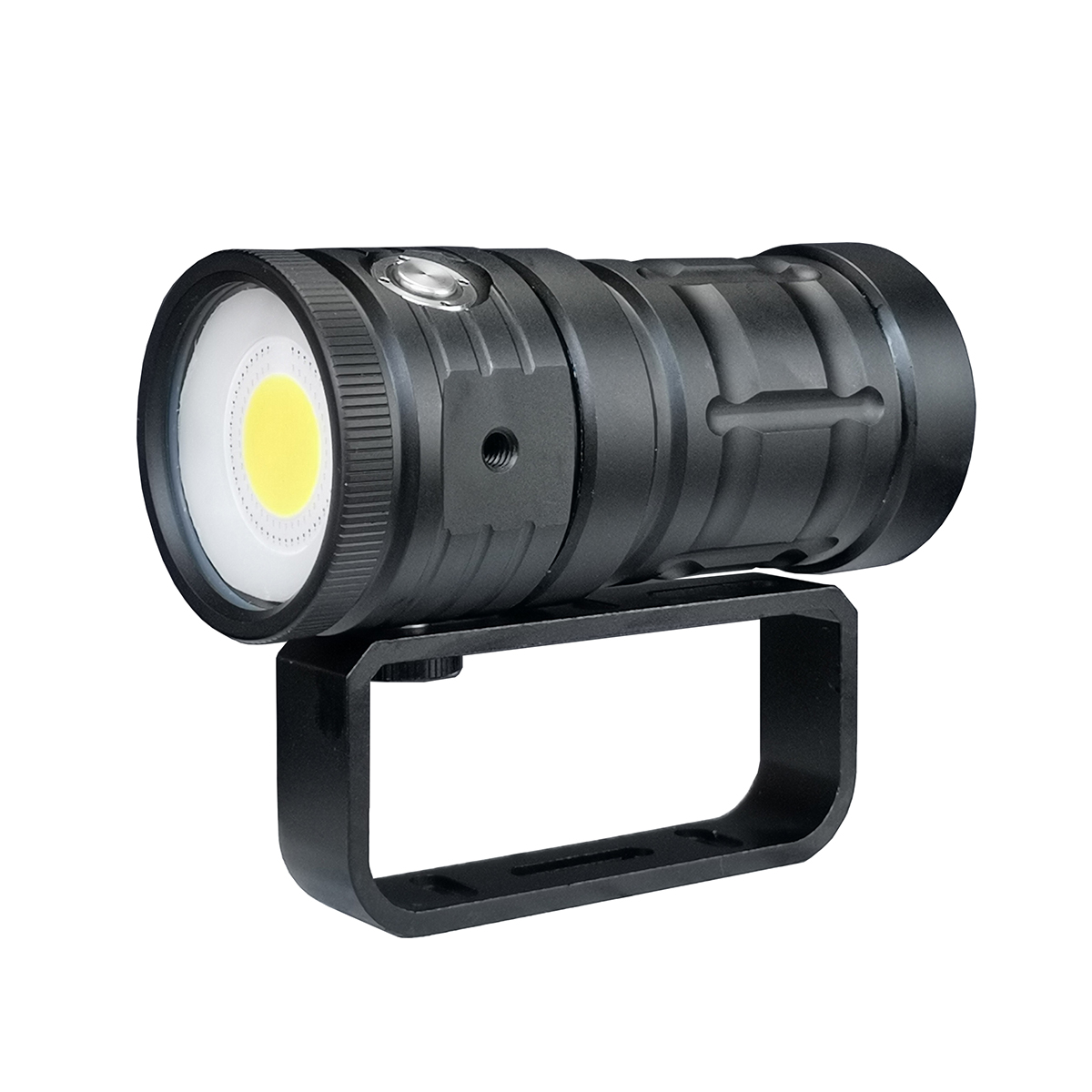

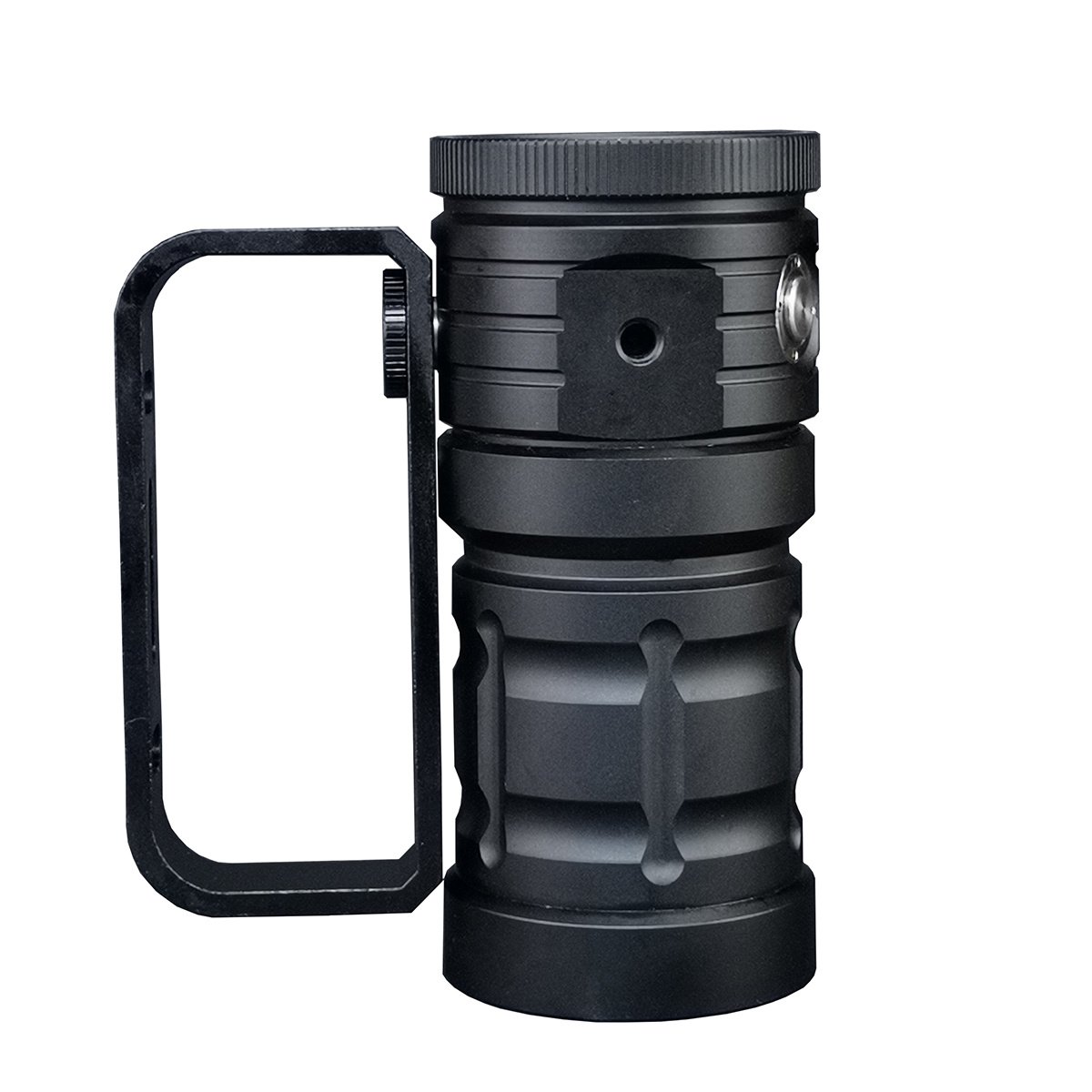

The COB-12 diving light is a professional photography fill light, and the ultra-high color rendering index Ra95 provides high color fill light for lighting and photography. It is designed to be lightweight, portable, and equipped with red and blue light auxiliary sources for professional photography. It can really illuminate the pristine colors of underwater objects, allowing divers to take the pictures they want. This light greatly improves the professionalism and variety of the light, and is the ideal equipment for professional photography and underwater diving photography.
Product Features:
Portable underwater lighting and photography fill light, using LED chips imported from the United States
PWM signal processing + constant current drive circuit
It has a unique safety device, which greatly improves the safety and low power protection function of the professional microcomputer chip power indicator light
Aviation 6061 aluminum material, hard anodized treatment of the shell can prevent seawater corrosion
Parameters: Light source: COB (color temperature 5000K)
Maximum brightness: white light (fill light) 8000 lumens, red light 400 lumens, blue light 12W
Beam angle: 140
Photography fill light voltage: 3.0V-4.2V

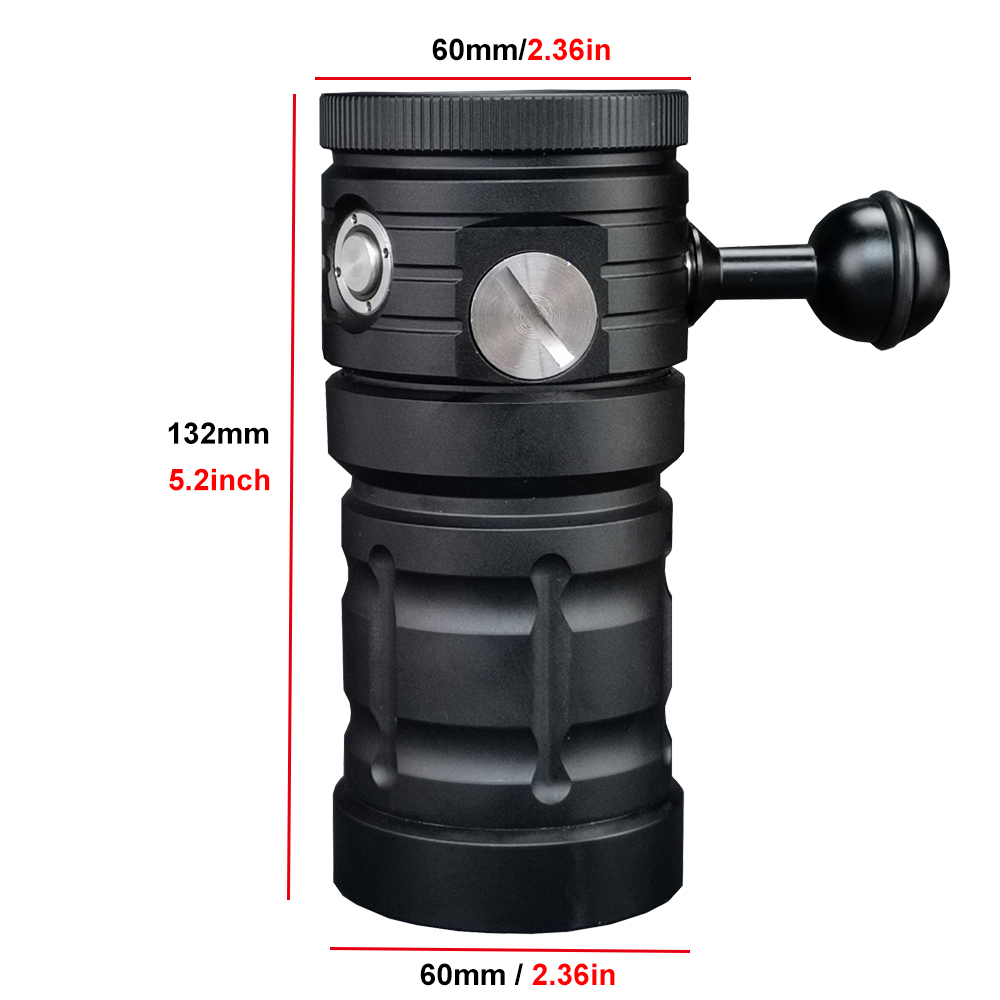

Lamp body size: lamp head diameter 60mm, lamp body diameter 60mm, length 132mm
Lens specification: 6mm (imported PC material)
Battery model: 21700*3 [lithium battery]
Weight: 600 grams (net weight)
Waterproof depth: 100 meters
Illustrate:

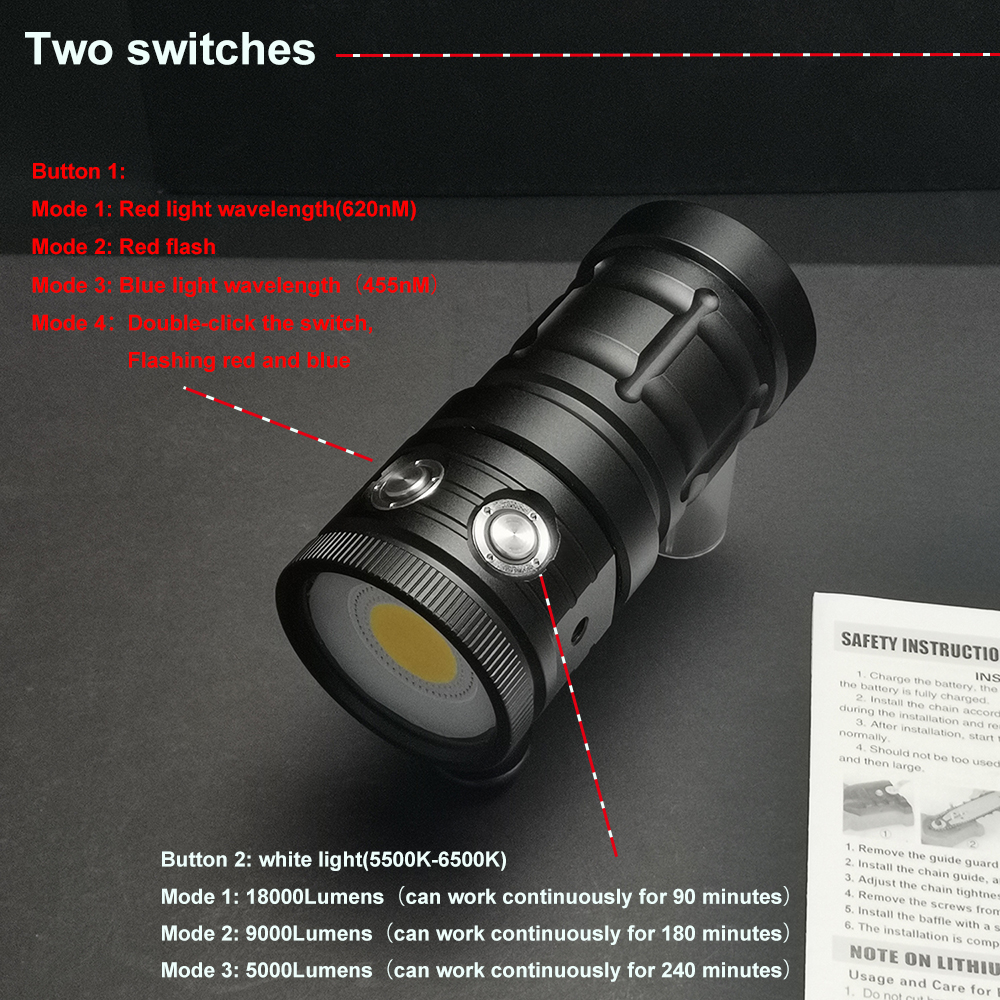

Switch function:
1 cycle mode: white light short key high-medium-low long press to close)
2 cycle mode: red light key, red light flashing – blue light flashing, double-click red light + blue light flashing, long press to close
3. Power indicator: 100%-31% green light, 30%-5% red light, less than 5% off
Note:
The structure of the flashlight is special, and special tools are used to install it. Disassembling it by yourself may cause damage to the flashlight.
Before each dive, please carefully check whether the waterproof position of the flashlight is tight. If it is loose, please tighten it before use.
After each dive, please rinse the flashlight interface thread and surface, switch with clean water. When the switch is slightly stuck, it can be cleaned with detergent. After the flashlight is dry, it is necessary to reapply the waterproof lubricant on the flashlight thread interface.
When transporting or not in use, turn off the light or turn it counterclockwise once to prevent accidental opening.
Charge the battery immediately after each use. If you don’t use it for a long time, please charge it every 3 months. Do not strike the torch, and prevent it from heating and corroding.
Do not leave the flashlight on unattended
Do not allow children to use this flashlight without adult supervision.
Do not direct the flashlight into the eyes of people or animals.
Packing list：
Fill light + data cable + manual * 1
